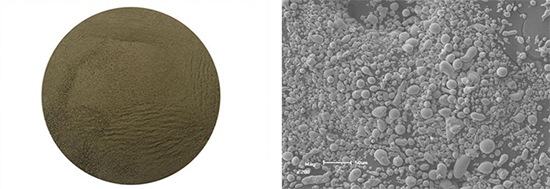

Atomised ferrosilicon 15%



Atomised ferrosilicon 15% is manufactured by melting fesi 75% ferrosilicon with premium scrap steel in an induction furnace. The melt is then blown into small particles by high pressure water jetting system. It is then dried and sieved into different grades and packaged as per customerí»s request.

Atomised fesi has the following properties:

(a) resistance to abrasion,
(b) resistance to corrosion,
(c) high specific gravity,
(d) magnetism, which allows easy magnetic recovery with subsequent easy demagnetization

Material Data Sheet


Fe: 80% min, Si: 14-16%, Mn: 0.8% max, Cr: 0.6% max, Cu: 0.5% max,
P: 0.10% max, S: 0.05% max

Particle Size Distribution

Grade coarse fine cyclone 60 cyclone 40
+212 (microns) 2-4 (%) 1-3 0-0 0-0
-212+150 5-9 3-7 0-1 0-0
-150+106 11-15 8-12 0-3 0-0
-106+75 15-21 13-17 2-4 1-3
-75+45 20-26 19-25 20-24 10-14
-45 32-42 42-50 68-78 82-90

Non-Magnestics: 0.5% Max
Density: 6.7-7.1
Packing: 1mt, 2mt, or iron drums as per request
